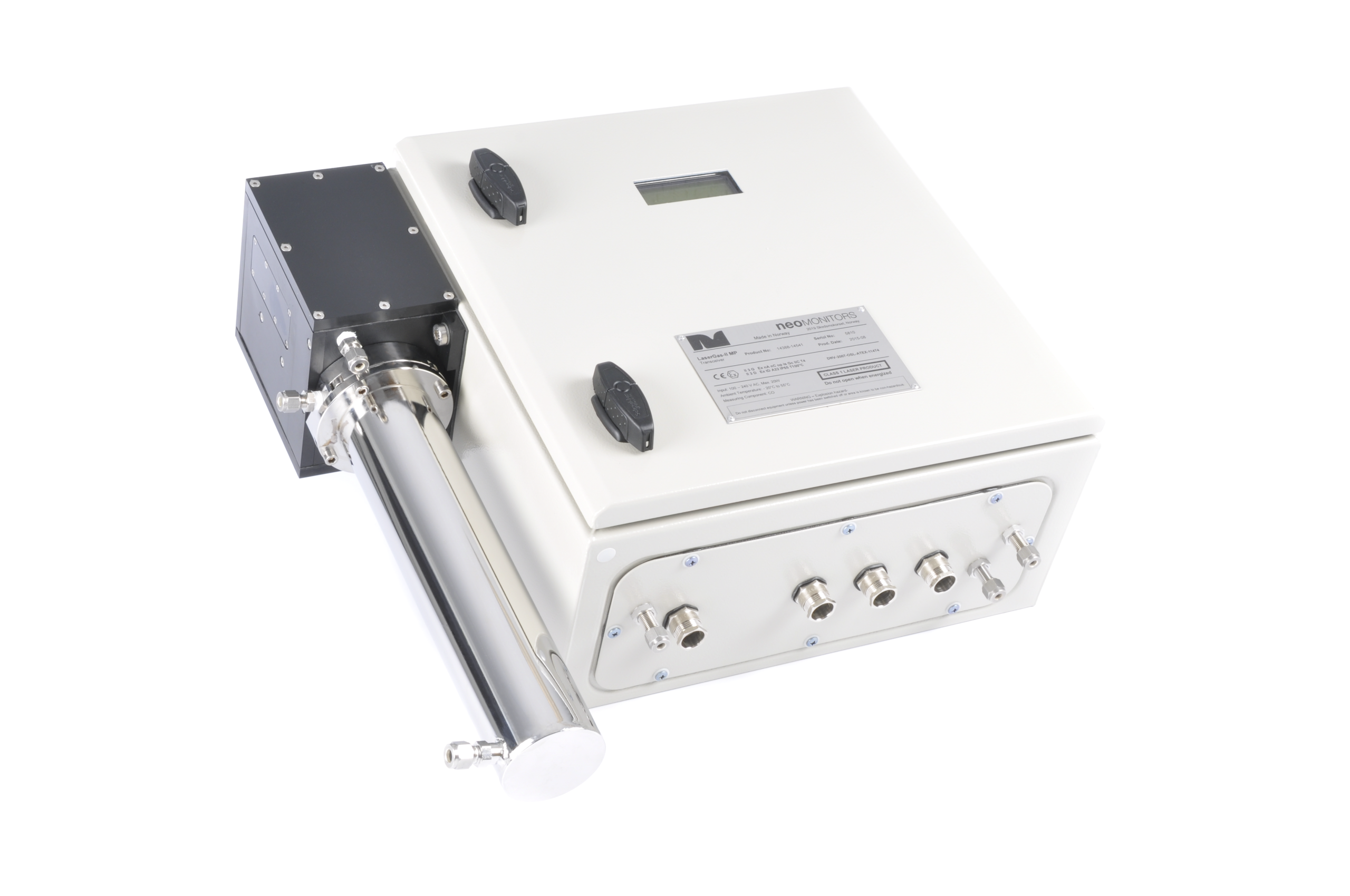

LaserGas™ II MP

Features

check Very low detection limits
check ATEX and CSA certified
check Short response time
Description

LaserGas™ II Multi Pass combines extractive measurement with a compact analyzer design. The laser beam is coupled into a measurement cell, where it is reflected multiple times between two spherical mirrors in order to enhance the analyzer sensitivity.

The monitor is a turn-key instrument. No other operations than connecting power, sample gas tubes and optional purge are required during installation. LaserGas™ MP provides a reliable and easy to use solution for a wide variety of applications.

Certifications and approvals
  • IECEx/ATEX Zone 2
  • CSA Class 1/Div 2 A,B,C,D
Features
  • Short response time (flow depended)
  • Very low detection limits (ppb for most gases)
  • No interference from background gases
  • Stable calibration
  • No zero drift
  • Extractive gas analysis in a controlled environment
  • No moving parts, no consumables, turn-key instrument
  • ATEX and CSA certified
Gases
  • CH4
  • CO ppm
  • CO2 ppm
  • H2S
  • HCl
  • HCl in VCM
  • HCN
  • N2O ppm
  • NH3
  • NO
  • NO2
  • O2
  • C2H2
  • H2



LIST OPP:  CO+CO2, CO+CH4



Applications
  • Chemical industry
  • Petrochemical industry (contaminants like H2S in NG)
  • Industrial gas (impurities in pure gases)
  • H2 purity measurement
  • Semiconductor industry
  • Power plants (stack testing of corrosive emission gases)
  • H2S emission monitoring (pulp & paper, refineries, bio-gas production)
  • ..and more
Customer benefits
  • The Multi Pass cell concept combines a long measurement path length with a compact analyzer design
  • Measures trace levels of gases, offline in a controlled environment
  • Optimize process
  • Limited need for maintenance
  • Highly reliable real time analyzer
  • Reduce emission to the environment
  • Easy to install and operate
  • Reduce daily operation costs
  • Well proven measurement technique
  • Low maintenance cost
