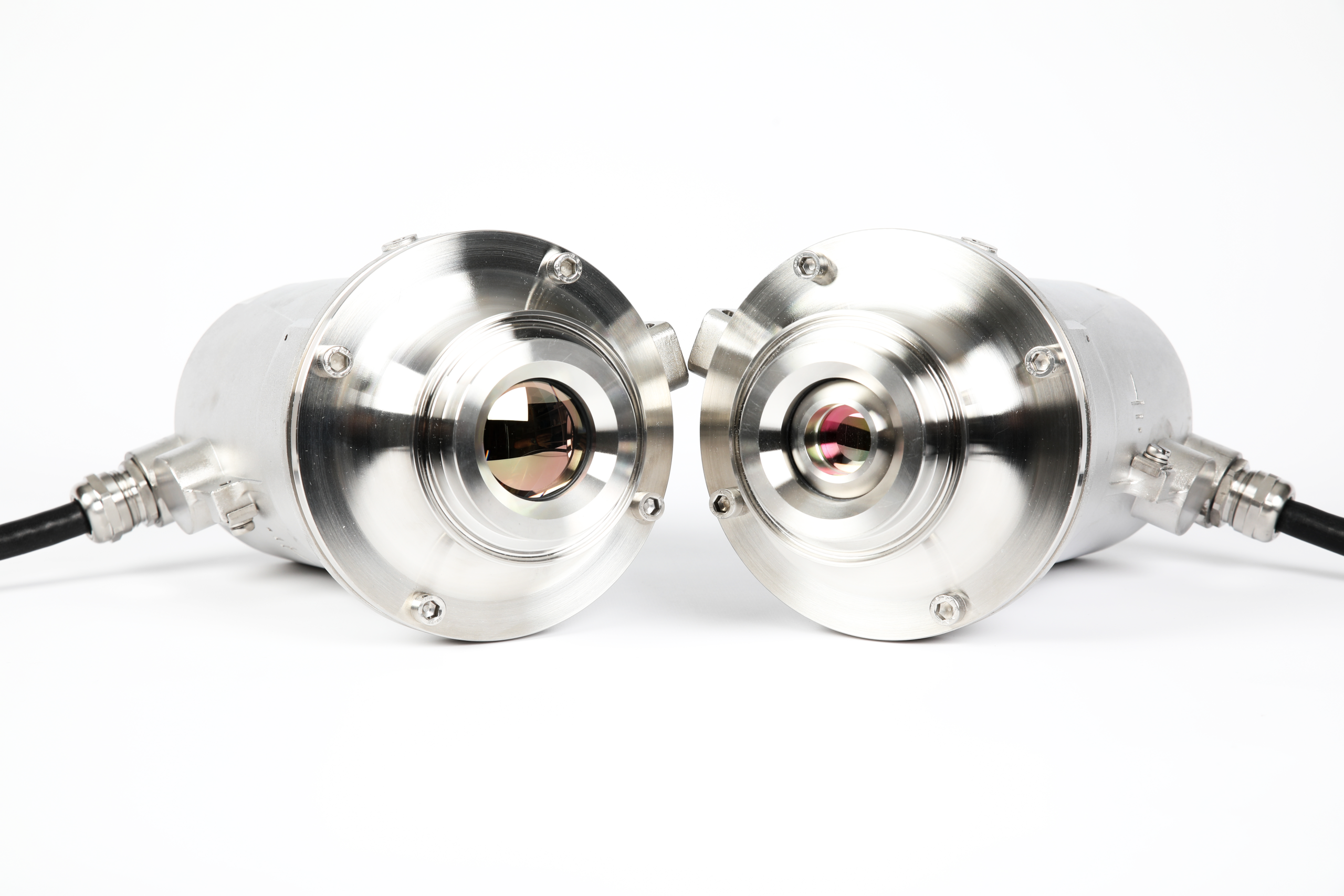

LaserGas™ III Ultra

Features

check Process control & process safety in a single analyzer
check Designed for long OPLs & high ranges
check Baseline-insensitive
Description

LaserGas™ III Ultra uses the innovative baseline-insensitive TDLAS technique specifically designed for combustion analysis. The Ultra simultaneously meets the requirements of combustion control and safety. That is, high measurement accuracy and high dynamic range with simultaneous real-time measurement capability.
Applications with very long path lengths and high gas concentrations are no problem for the Ultra.

Thanks to the baseline insensitivity and the use of the proprietary IROSS signal processing, high measurement accuracy is achieved even with complex gas mixtures.
LaserGas™ III Ultra CO in combination with LaserGas™ III O2 are a perfect combination for proper combustion control and safety.

Certifications and approvals
  • IECEx/ATEX Zone 1 – Ex db [op is Ga] IIC T4 Gb
    Ex tb [op is Da] IIIC T100°C Db
  • CSA Class 1/Div 2 B,C,D, T4
  • ATEX rating connection box: II 2 GD Ex e IIC T5
    II 2 D Ex e tb IIIC T85°C Db
Gases
  • CO
  • CO + CH4
Features
  • In-situ real time measurements
  • TDLAS technology
  • Baseline-insensitive
  • High dynamic range
  • Fast response time
  • Low detection limit
  • No interference from other gases
  • Not affected by high dust load
  • Lifetime calibration, no zero drift
  • Integrated span check
  • Compact design
  • Low power consumption (< 10W)
  • Ethernet connectivity
Applications
  • Combustion control
  • Boilers
  • Heaters
  • Refineries
  • Powerplants
  • Chemical industries
  • Petrochemical industries
  • Steel industries
    …and more
Customer benefits
  • Process control & process safety in a single analyzer
  • Reliable in-situ CO measurements in real time
  • Designed for long OPLs & high ranges
  • Reduce fuel consumption
  • Minimize pollutants emission
  • Simple installation, ease of use
  • Low maintenance cost
  • No consumables
  • No sampling systems
  • Compressed air purge (no need for Nitrogen)
  • No regular calibrations needed
  • Designed for applications with complex gas mixtures
